Explorer 7630 Case

CODE: 7630

Explorer 7630 Case

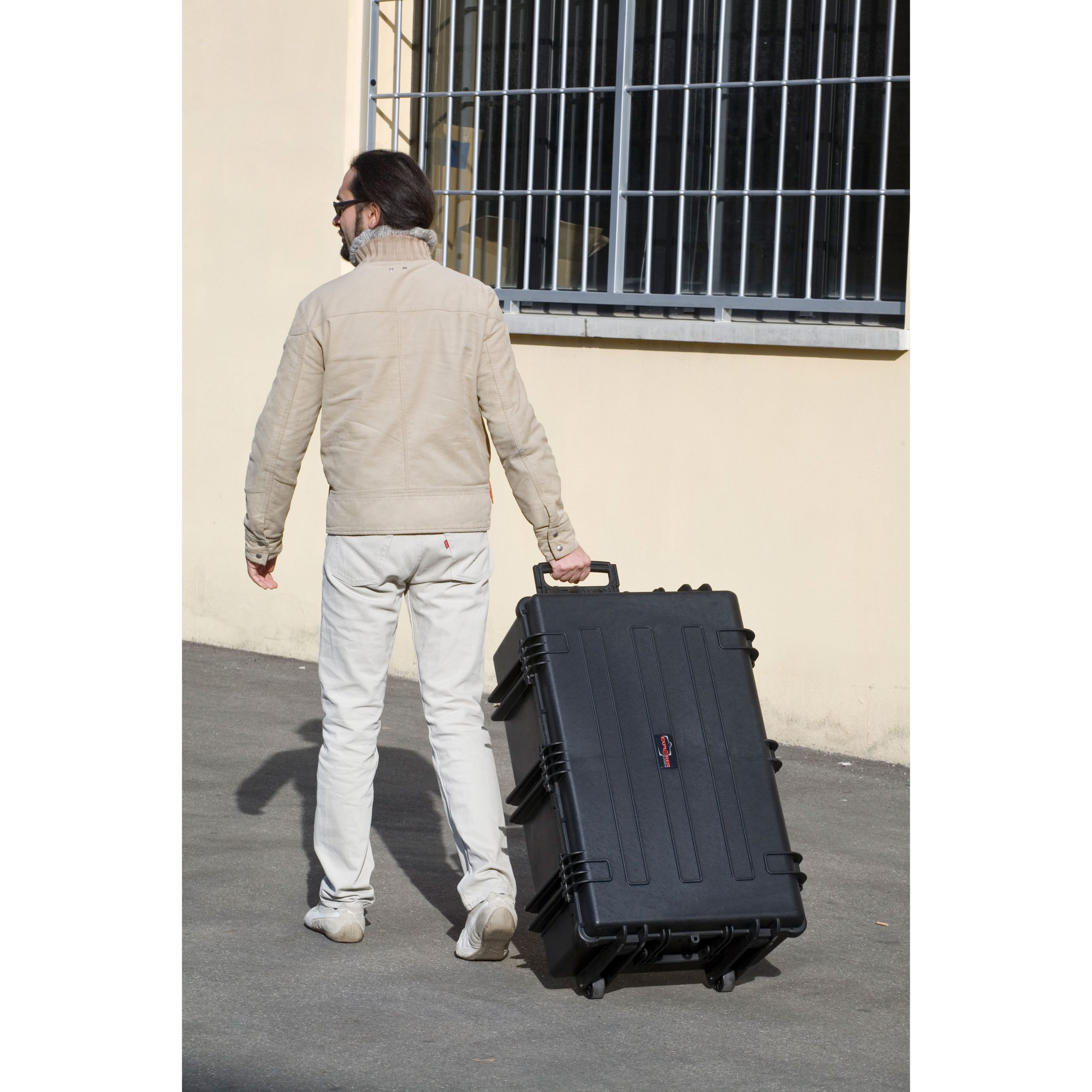

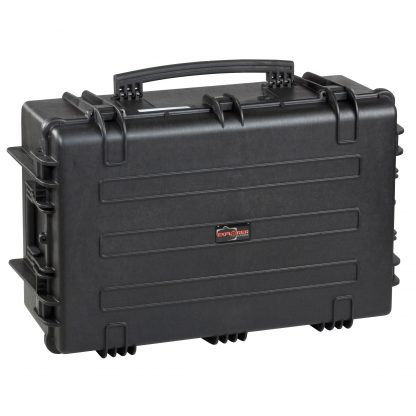

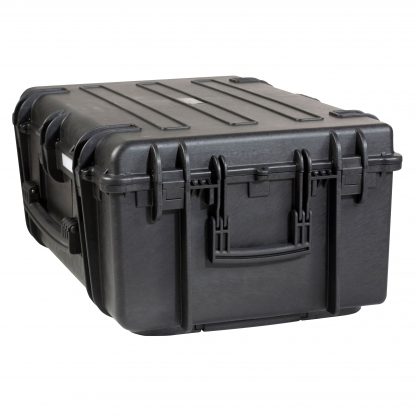

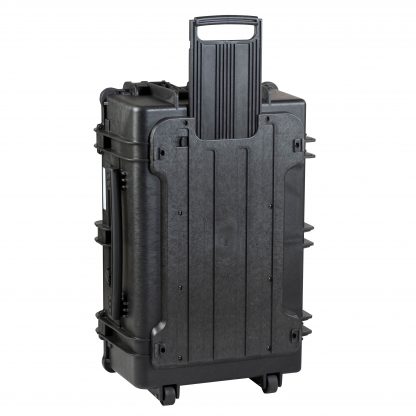

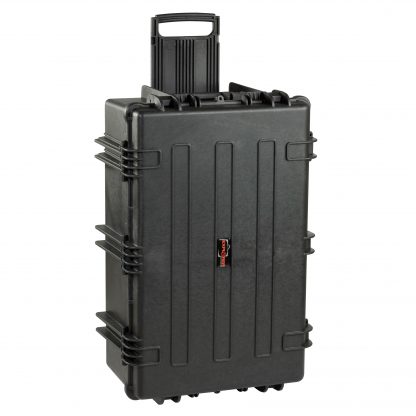

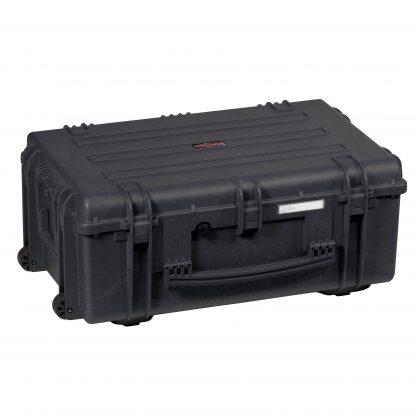

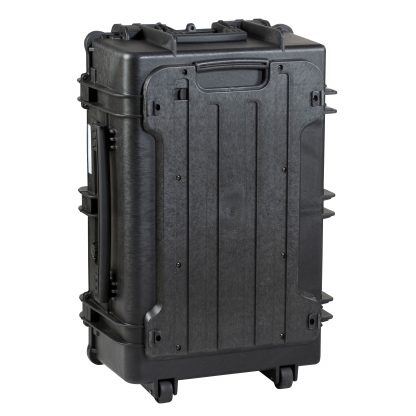

The Explorer 7630 Case is a large IP67 certified case with two padlockable points, self oiling wheels and a telescopic handle with a quick and safe lock-unlock system. The side handles offer a two person lift option.

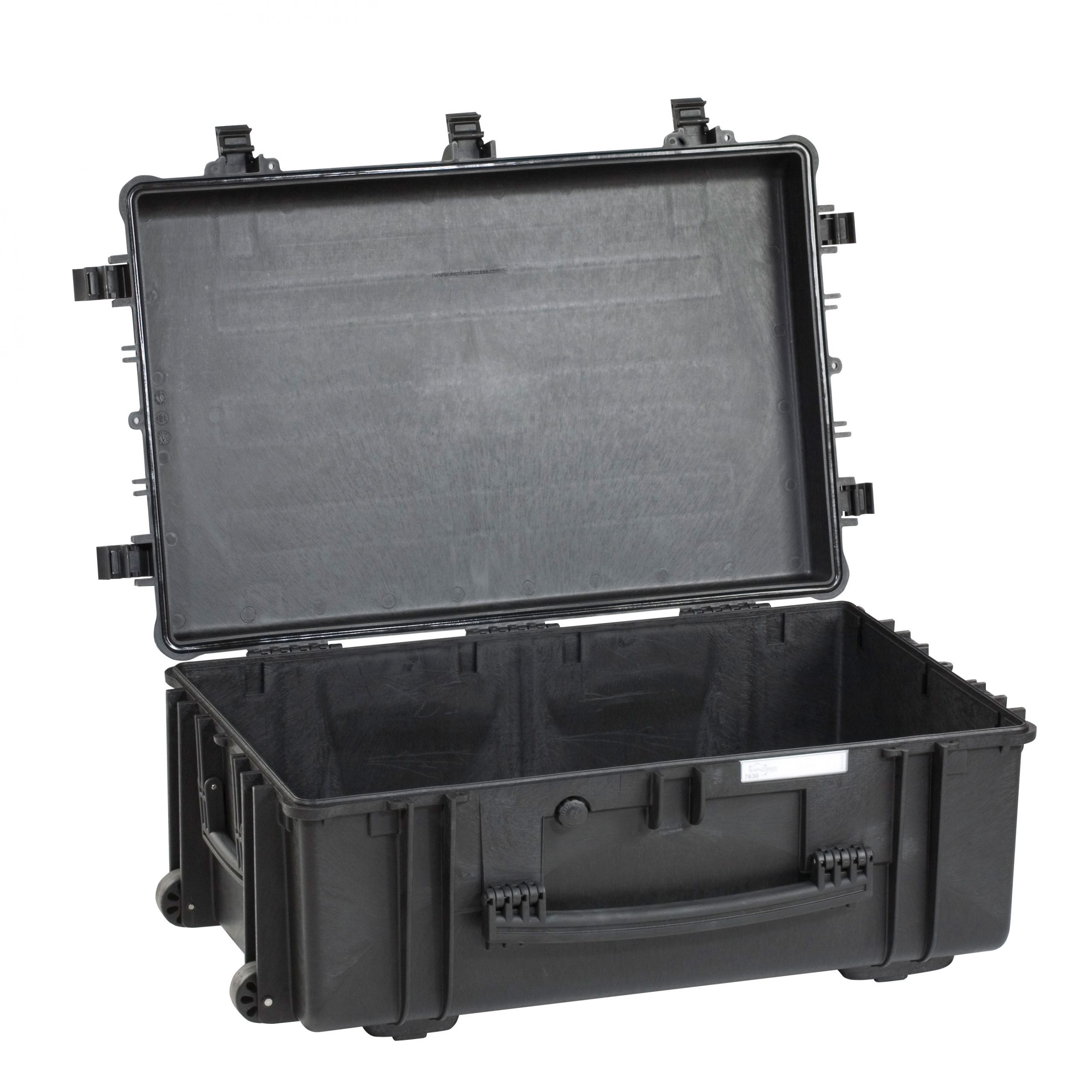

Explorer 7630 is available in three colours, black, olive drab green and orange. There are two standard configurations, empty or with layers of pre-cubed, Pick ‘n’ Pluck foam. The case is also compatible with the DIV7630 padded dividers and BAG-M padded bag, ideal for storing valuable items. See the “Compatible Accessories” tab above for more accessories.

Featuring a sealing o-ring that provides the Explorer 7630 Case with it’s watertight seal and IP67 rating. The manual purge valve helps release and equalise any built up pressure inside the case.

Internal slots allow you to fit panel mounting brackets (KIT SUPP.EXPL.), offering secure equipment mounting points inside the case.

Add an Explorer patented combination padlock to your case for ultimate security and peace of mind.

Every year thousands of Explorer Cases are chosen to protect and carry sensitive and expensive equipment all over the world. Made from Explorer’s innovative Copolymer Polypropylene compound, offering safe transportation for electronic equipment, precision instrumentation and sensitive equipment. The Explorer 7630 Case can withstand the harshest conditions and is certified to resist temperatures from -33 to +90°C.

Explorer Cases are exclusively designed and manufactured in Italy, Europe.

TECHNICAL SPECIFICATIONS

External Dimensions 860 (L) x 560 (W) x 355 (D) mm
Internal Dimensions 765 (L) x 485 (W) x 305 (D) mm
Lid Depth 60 mm
Base Depth 245 mm
Weight 13.56 kg
Weight with Foam 16.39 kg
Volume 113.1 Litres
Buoyancy 81.8 kg/max
Certificates DEF-STD 81-41
IP Rating 67
Wheels? Yes

EXPLORER CASES FEATURES

Explorer Cases is a complete range of indestructible waterproof cases: the ideal solution to meet the needs of the most demanding users, in the extreme conditions. In fact, every day thousands of professionals all over the world trust and rely on their Explorer Cases to protect the most valuable tools and pieces of equipment during their journeys.

Explorer 7630 Case

COMPATIBLE EXPLORER ACCESSORIES

DOWNLOADS

CERTIFICATIONS Explorer 7630 Case
FOAM LAYOUT Explorer 7630 Case
TECHNICAL DRAWINGS Explorer 7630 Case
