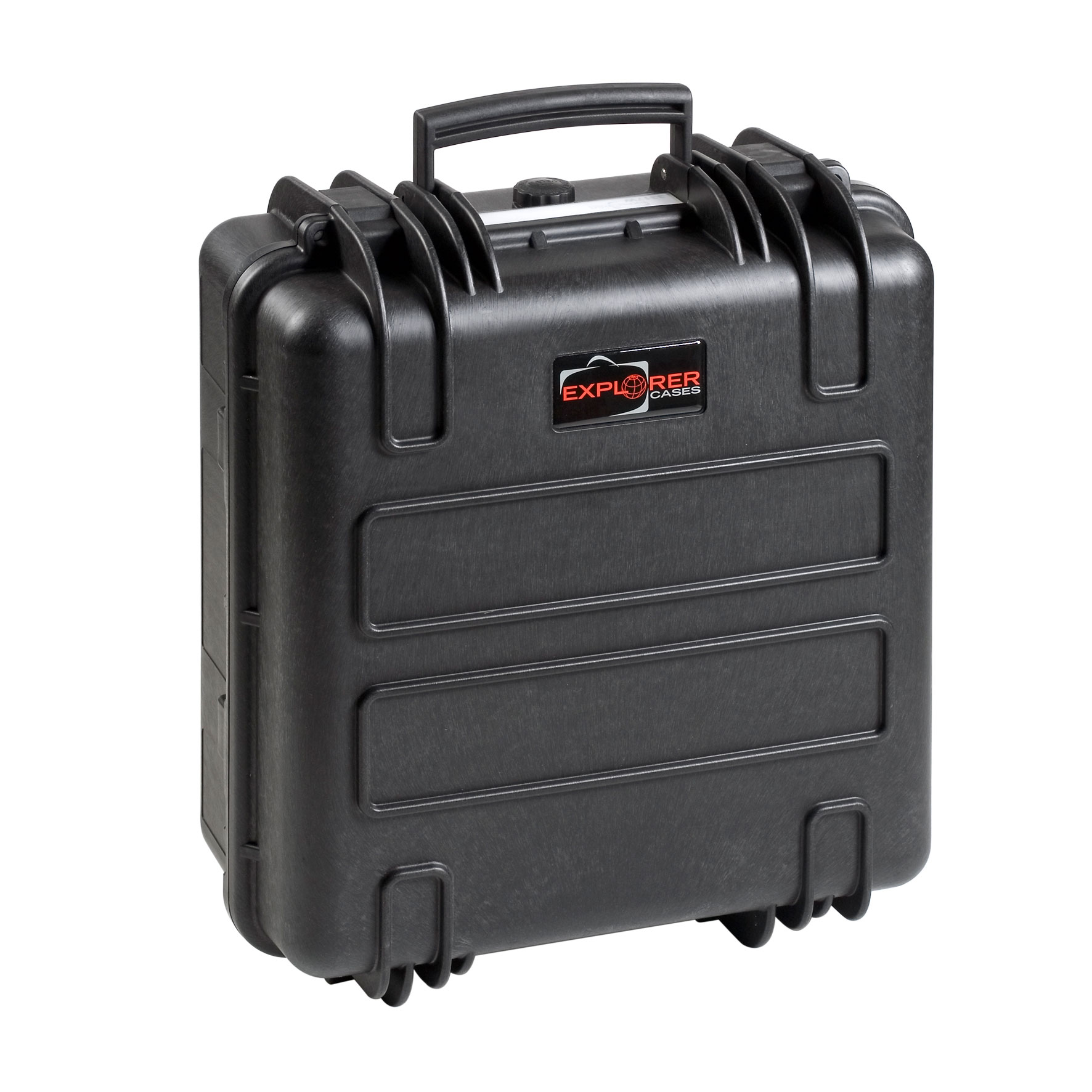

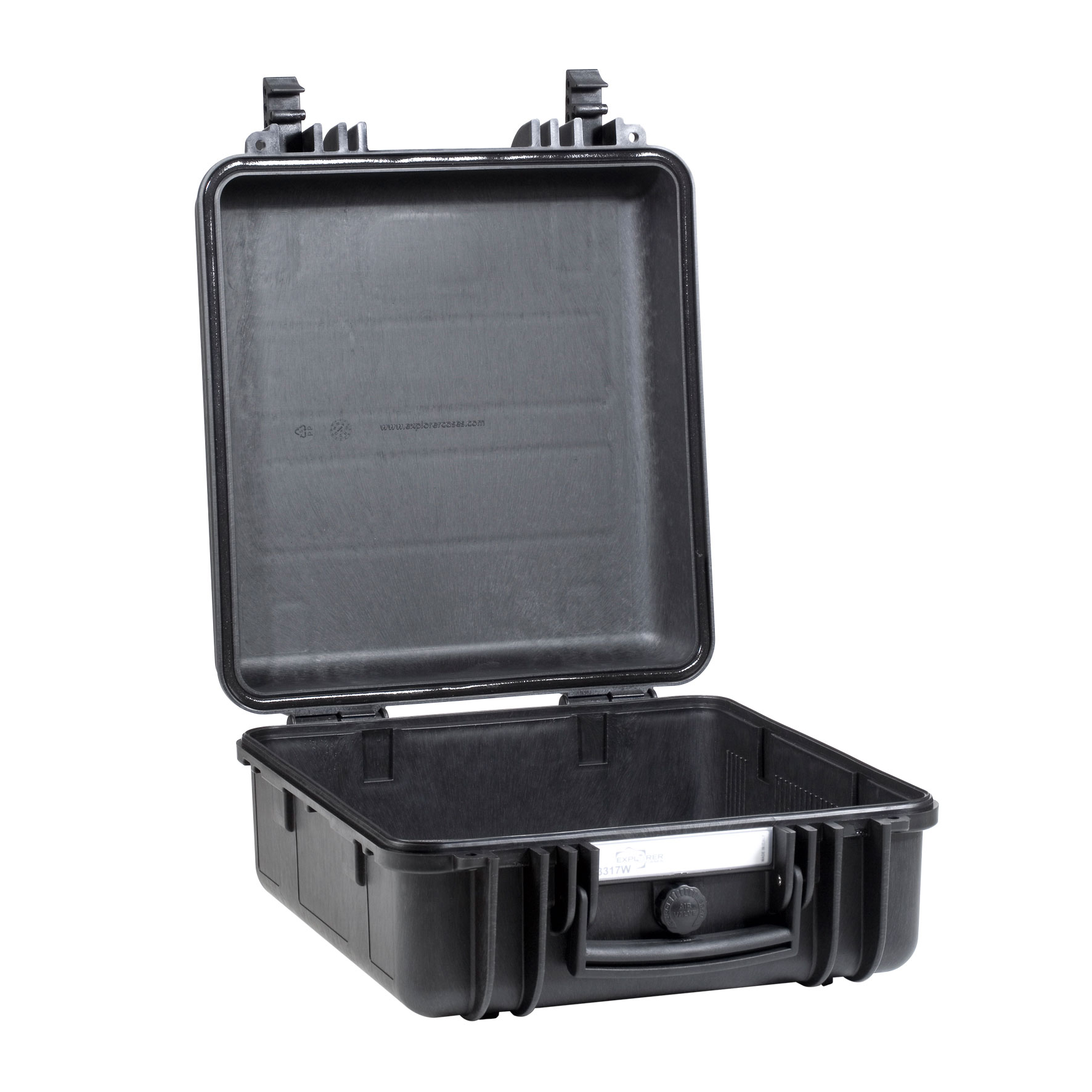

Explorer 3317W Case

CODE: 3317W

Explorer 3317W Case

The Explorer 3317W Case is a resistant waterproof cases, made of a special plastic resin compound.

Explorer 3317W is available in three colours, black, olive drab green and orange. There are two standard configurations, empty or with layers of pre-cubed, Pick ‘n’ Pluck foam. The case is also compatible with the DIV3317W padded dividers and BAG-U padded bag, ideal for storing valuable items. See the “Compatible Accessories” tab above for more accessories.

Featuring a sealing o-ring that provides the Explorer 3317W Case with it’s watertight seal and IP67 rating. The manual purge valve helps release and equalise any built up pressure inside the case.

Internal slots allow you to fit panel mounting brackets (KIT SUPP.EXPL.), offering secure equipment mounting points inside the case.

Add an Explorer patented combination padlock to your case for ultimate security and peace of mind.

Every year thousands of Explorer Cases are chosen to protect and carry sensitive and expensive equipment all over the world. Made from Explorer’s innovative Copolymer Polypropylene compound, offering safe transportation for electronic equipment, precision instrumentation and sensitive equipment. The Explorer 3317W Case can withstand the harshest conditions and is certified to resist temperatures from -33 to +90°C.

Explorer Cases are exclusively designed and manufactured in Italy, Europe.

TECHNICAL SPECIFICATIONS

External Dimensions 360 (L) x 420 (W) x 194 (D) mm
Internal Dimensions 330 (L) x 350 (W) x 170 (D) mm
Lid Depth 68 mm
Base Depth 102 mm
Weight 2.92 kg
Weight with Foam 3.3 kg
Volume 19.6 Litres
Buoyancy 10.6 kg/max
Certificates DEF-STD 81-41
IP Rating 67

EXPLORER CASES FEATURES

Explorer Cases is a complete range of indestructible waterproof cases: the ideal solution to meet the needs of the most demanding users, in the extreme conditions. In fact, every day thousands of professionals all over the world trust and rely on their Explorer Cases to protect the most valuable tools and pieces of equipment during their journeys.

Explorer 3317W Case

COMPATIBLE EXPLORER ACCESSORIES

DOWNLOADS

CERTIFICATIONS Explorer 3317W Case
FOAM LAYOUT Explorer 3317W Case
TECHNICAL DRAWINGS Explorer 3317W Case
